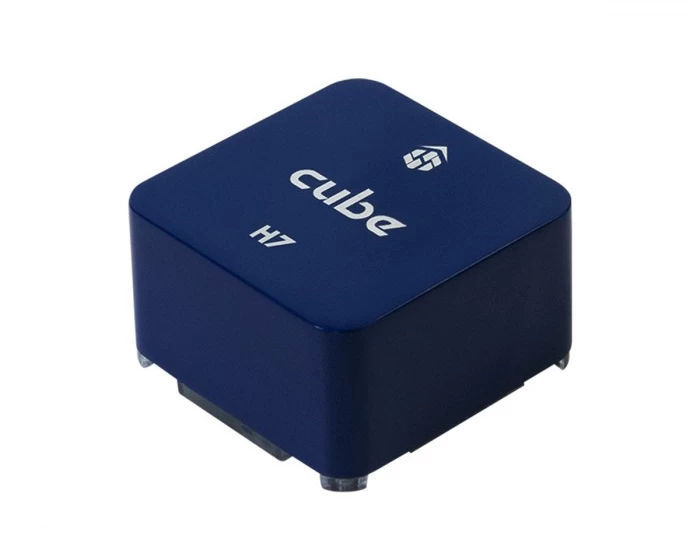

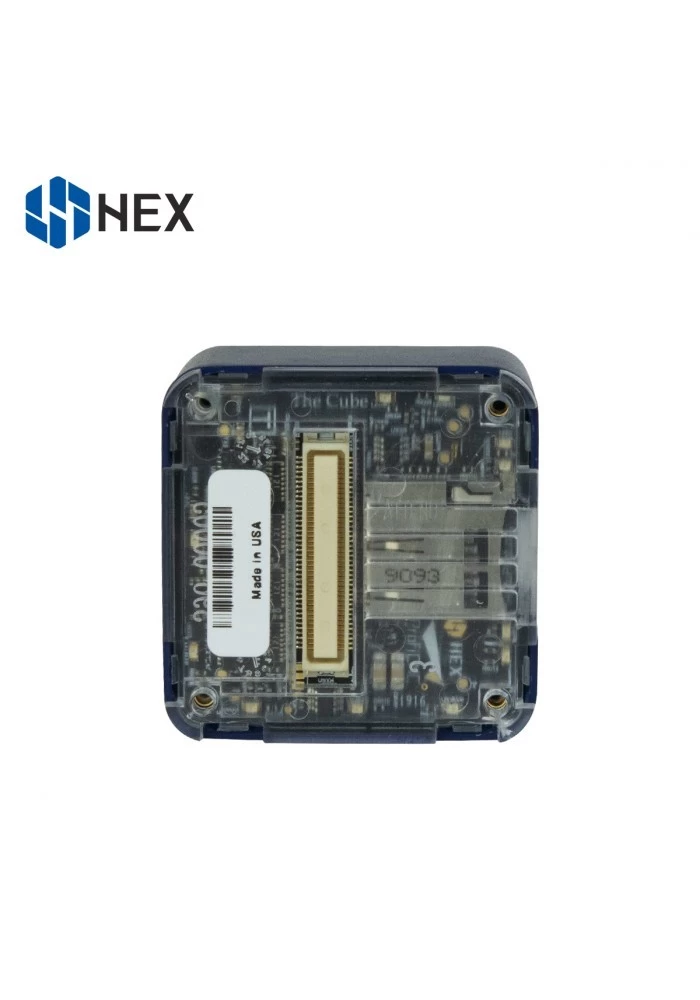

CubePilot The Cube Blue H7 – Pixhawk 2.1 Made In The USA

The Cube Blue H7 is based on the Cube Orange design, but built in the USA.
It features a state of the art IMU and an STM32H753 processor.

The Cube Blue H7, the US built version of the Cube Orange autopilot, is the most powerful model in the lineup of Pixhawk-lineage flight controllers. The Cube boasts triple redundant, temperature-controlled, and shock-absorbing IMUs, and is designed for integrators, vehicle manufacturers, and hobbyists alike. The powerful, next-generation H7 processor offers better performance, faster processing, and more built-in security.

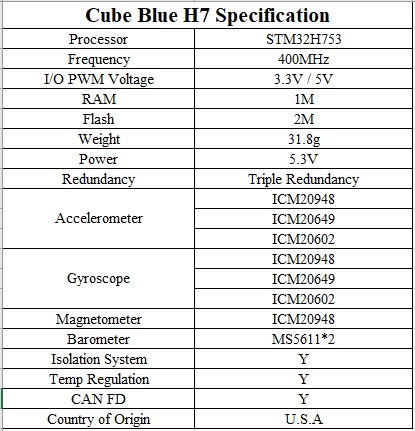

SPECIFICATIONS

Connections and Interfaces:

• 14x PWM servo outputs (8 from IO, 6 from FMU)
• S.Bus servo output
• R/C inputs for CPPM, Spektrum / DSM and S.Bus
• Analogue / PWM RSSI input
• 5x general purpose serial ports, 2 with full flow control
• 2x I2C ports
• SPI port
• 2x CAN Bus interface
• 3x Analogue inputs (3.3V and 6.6V)
• High-powered piezo buzzer driver (on expansion board)
• High-power RGB LED (I2C driver compatible connected externally only)
• Safety switch / LED

PROCESSOR

• STM32H7 Processor
• 32-bit failsafe co-processor

SENSORS

• Three redundant IMUs (accelerometers, gyros and compass)
• Two redundant barometers

POWER

• Redundant power supply with automatic failover
• Servo rail high-power (7 V) and high-current ready
• All peripheral outputs are over-current protected, and all inputs ESD protected

Regarding Hex/CubePilot products, CubePilot products are NDAA compliant, Executive Order 13981 Compliant. CubePilot PTY LTD is an Australian owned company, bringing you True Blue Allied and USA built solutions for your unmanned applications. Our Supplier, HexAero PTE LTD is also an Australian owned company based out of Singapore, our manufacturing is done by American and Allied owned Factories in California and Taiwan.
