Castle Creations CCBEC 10A Peak 25V Max Input SBEC
Original price was: $23.79.$16.65Current price is: $16.65.
- 100% environmentally friendly material
- The quality solution for all your needs.
- No-Questions-Asked Returns
- Quality Meets Affordability
What the heck is a BEC?

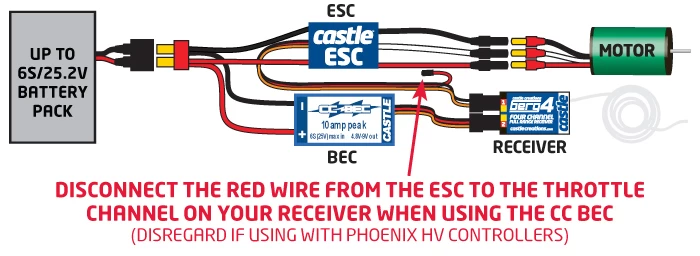

Our Battery Eliminator Circuits are small devices that eliminate the need for a receiver and servo battery pack. They draw higher voltage from the motor batteries and drop it to a voltage level that is suitable for your receiver and servos. This is required in applications which draw high power for multiple servos or use more than 3S motor packs, as most ESCs with linear BECs are not designed for these applications.
CC BEC is better because it is smaller, cheaper, and far more powerful.
See the CC BEC User Guide for more details.
| CC BEC SWITCHING REGULATOR | |
|---|---|
|
Current Output: |
Peak: 10 amps Continuous: <12 volts input = 7 amps* <24 volts input = 5 amps**Ratings are determined with a 5mph airflow on the BEC. Servo connectors are not rated for current in excess of 5 amps. Users are encouraged to replace the connectors if more than 5 amp currents are anticipated. |
|
Output Voltage: |
Output 5.1 volts out of the package, user may set output voltage from 4.8 to 9 using the Castle Link (sold separately). |
|
Input Voltage: |
5v to 25.2v (2S to 6S LiPo) |
|
Length: Width: Height: |
1.2” (30mm) 0.6” (15mm) 0.4” (10mm) |
|
Weight: |
0.4 oz (11 grams) |
