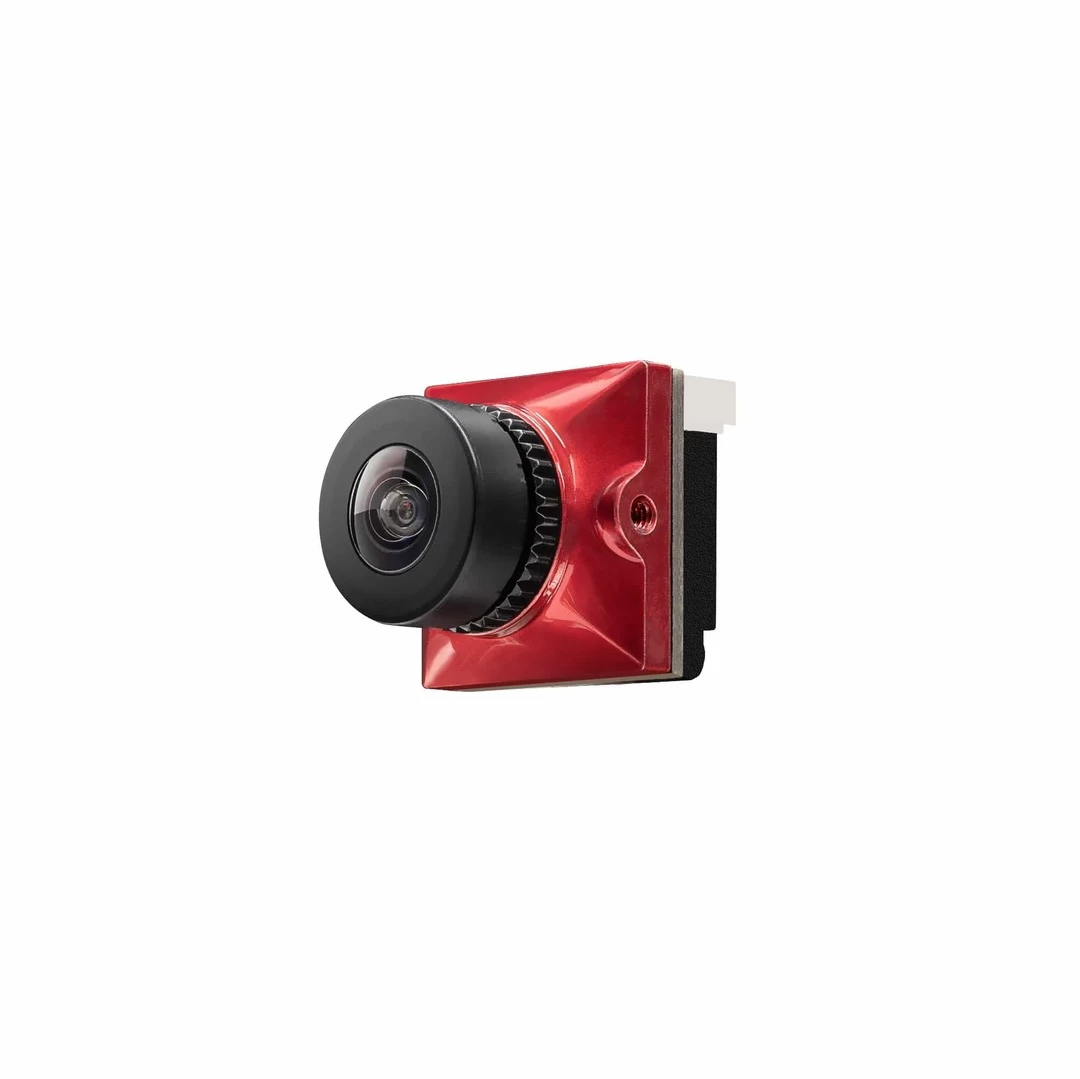

Caddx Ratel2 Analog Camera Red With 2.1 Lens

The Caddx Ratel 2 is a great camera choice for both night flight as well as during the day! Equipped with a high quality 1/1.18″ HDR sensor, it provides up to 0.0001 Sensitivity of lux. It is very versatile in that you can switch between PAL and NTSC video and also between 4:3 and 16:9 video formats. Latency is super low at only 8ms.

Specifications

• Model: Caddx Ratel 2
• Image Sensor: 1/1.8″ Inch starlight HDR sensor
• Horizontal Resolution: 1200TVL
• TV System: NTSC & PAL (changeable)
• IMAGE: 16:9 & 4:3 (changeable)
• WDR: Super WDR （HDR)
• Min. Illumination: Starlight
• Lens: 2.1mm
• Synchronization: Internal
• Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
• S/N Ratio: >60dB (AGC OFF)
• Video Output: CVBS

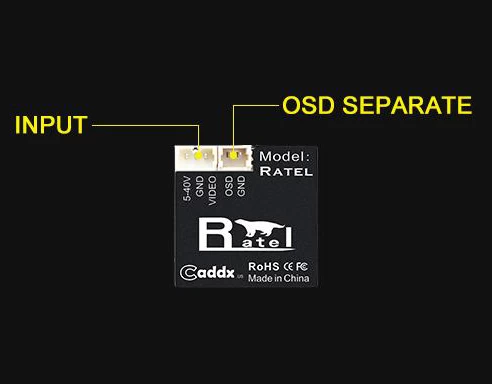

• Camera OSD: Spearte OSD (no flight information)
• DNR: 3-DNR
• LANGUAGE: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN
• Day/Night: Auto/Color/B&W/EXT
• Dimensions: 19mm*19mm*19mm
• Wide Power Input: DC 5-40V
• Work Temperature: -20℃~+60℃
• Work Humidity: 20%~80%
• Weight: 8g (N.W.)/ 40.5g (G.W.)

Included

• Camera x1
• Aluminum bracket x1
• 5D-OSD menu board x1 pcs
• 1x 4pin FPV silicone cable A x1 (extend into a 2pin joint for OSD board and a 3pin joint for FPV)
• FPV silicone cable B x1 (2-pin port for both side)
• Internal hexagonal wrench x1
• Screws x1 set
• Warranty card x1
