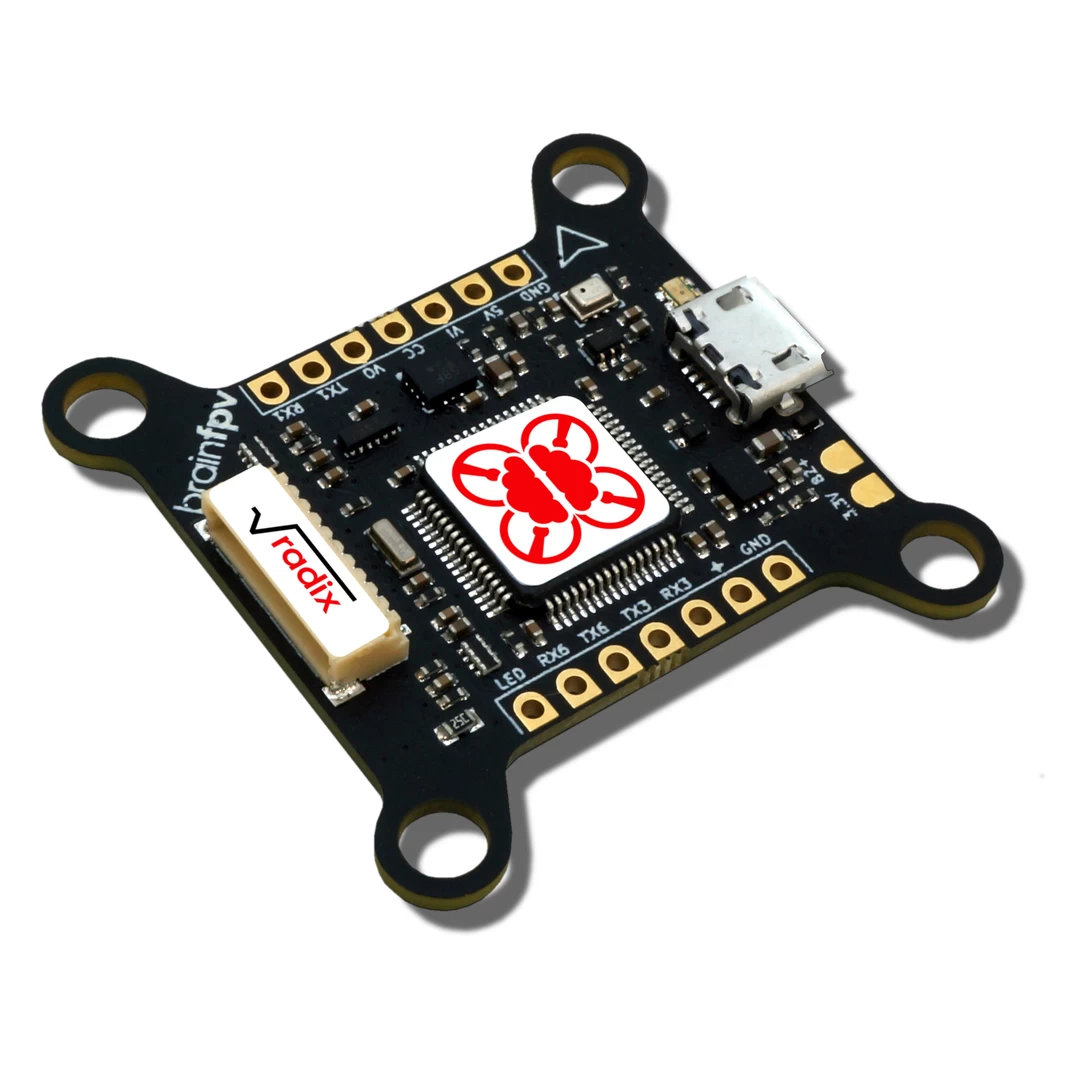

BrainFPV Radix FC Flight Controller

The nerds over at BrainFPV are proud to introduce RADIX, the smartest, most innovative line of drone electronics BrainFPV has ever developed.

The RADIX flight controller has an integrated graphical OSD that you can add your own logos to, and has features like a built-in barometer, a microSD card slot for logging, a sexy form factor, vibration isolation, and also a camera control pad. If you like separate ESCs, you can stack it on the RADIX power board (pb), which can handle ridiculous amounts of power (up to 8S and 160A!) and even has integrated programmable LEDs! Or if you are into more compact and lightweight racing builds, you can stack the RADIX fc onto a 4-in-1 ESC! Naturally, we’ve included all the cables needed for a hassle free plug-and-play experience! Boom, now go fly your heart out.

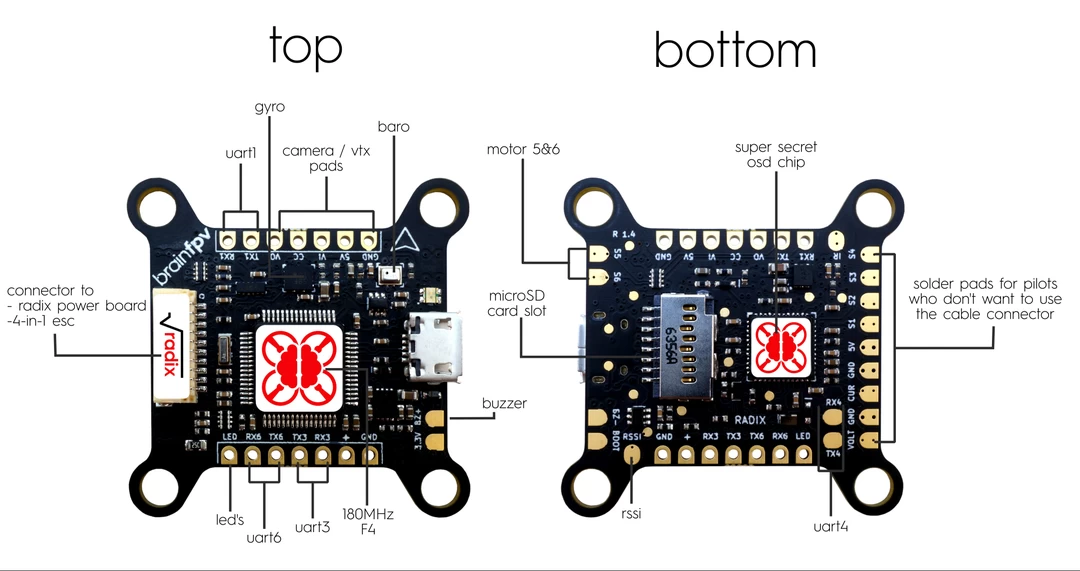

RADIX FC Features

• Best setup manual ever made
• Improved form factor for easier soldering of PDB / 4-in-1 ESC underneath RADIX FC

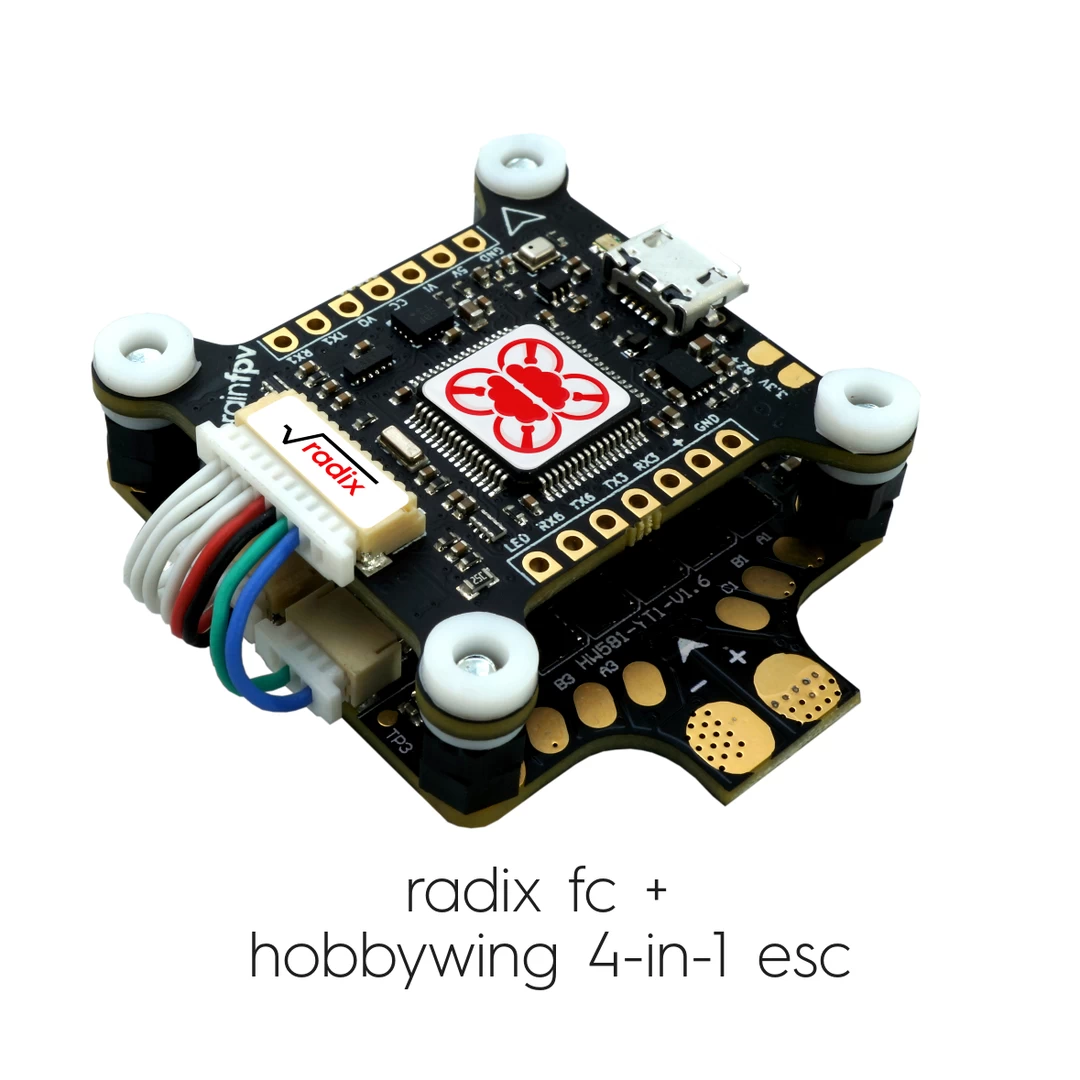

• Plug-and-play stacking on RADIX PB or Hobbywing 4-in-1 ESC using soft cables for vibration isolation
• Graphical OSD – the only flight controller running BF with this feature
• Customizable OSD logos using the BrainFPV Logo Customizer
• STM32 F4 processor running at 180MHz
• Better sensors – Bosch BMI160 gyro, proven on RE1 (pilots are raving about it)
• Integrated barometer – so you always know how high you are
• MicroSD card slot for logging
• Integrated silicone grommets for vibration isolation
• Dedicated camera control pad for changing camera settings
• Dedicated RGB LED output for programmable LEDs
• Four full hardware serial ports (UARTs) – two of them have signal inverters that are automatically enabled or disabled, so they can be used with S.Bus or SmartPort
• 6 motor outputs with support for DHSOT (150/300/600/1200) and OneShot
• Supports Betaflight
• Engineered and tested in the USA
